FREE BATHROOM PLANNING TOOL

Check rough-in, side clearance, and front space before you buy. Use the exact dimensions from the toilet's official spec sheet whenever possible.

Fast answerNo signupRuns in your browser

Measure from the finished wall. For rough-in, measure to the center of the floor flange or mounting bolts—not the baseboard or trim.

Your bathroomMeasurements where the toilet will be installed

Actual rough-in ?

Left side clearance ?

Right side clearance

Finished wall to nearest front obstruction ?

The toilet you wantUse the manufacturer spec sheet

Required / nominal rough-in Overall toilet length ?

Expected gap behind toilet ?

I know the exact wall-to-front projection

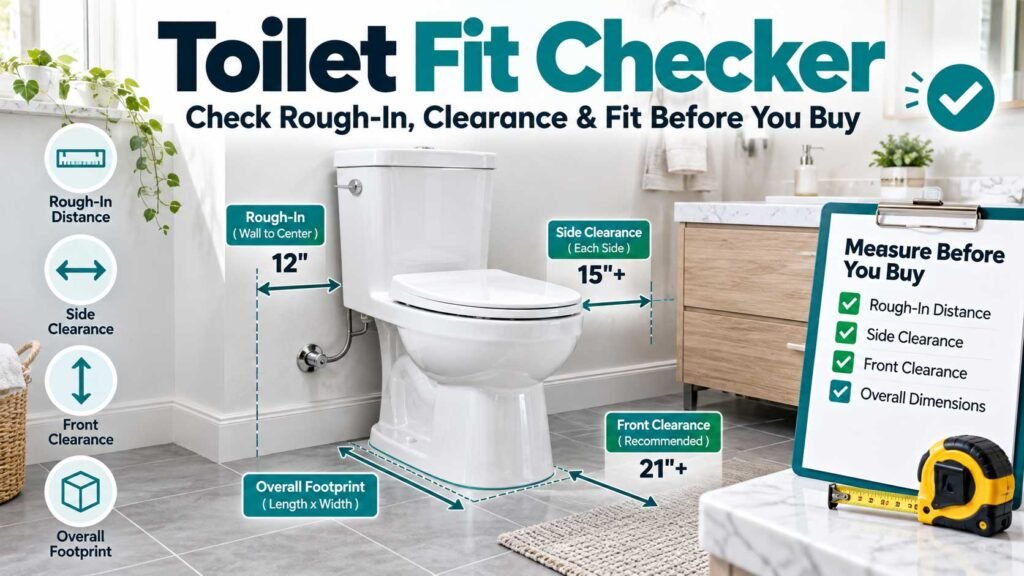

General code reference used for the space check: 15 in from toilet centerline to side obstructions and 21 in clear in front. Local codes and accessibility rules can differ.

How the fit check works

Rough-in: compares your measured rough-in with the toilet's required or nominal rough-in. A smaller rough-in is treated as a problem unless the manufacturer explicitly allows it.

Side space: compares the toilet centerline to each side obstruction with the 15-inch general IPC reference.

Front space: subtracts the toilet's installed wall-to-front projection from the distance to the nearest front obstruction, then compares the remaining space with the 21-inch general IPC reference.

Important: model-specific installation drawings control. Supply-stop location, base shape, skirted trapways, bidet-seat outlets, and door swing can still affect installation even when these checks pass.
